Shaft Bearings & Gland Seal Removal

Shaft Bearings Flogged Out

The owner reported a vibration when underway, and when the boat was hauled out we could see and feel the play in both the intermediate and strut bearings. The propellers had to be removed to pull the shafts as the rudders were in the way, once we had them all apart and the shafts pulled we sent both the propellers and shafts away to be checked for damage and any repairs that needed to be made. We pulled the bearings and could see the visible wear where the shaft had been rubbing unevenly and causing the vibration. After fitting 4 new bearings and getting the shafts back from repair, we could reinstall the shafts, propellers and fit new gland seals.

Img 1560

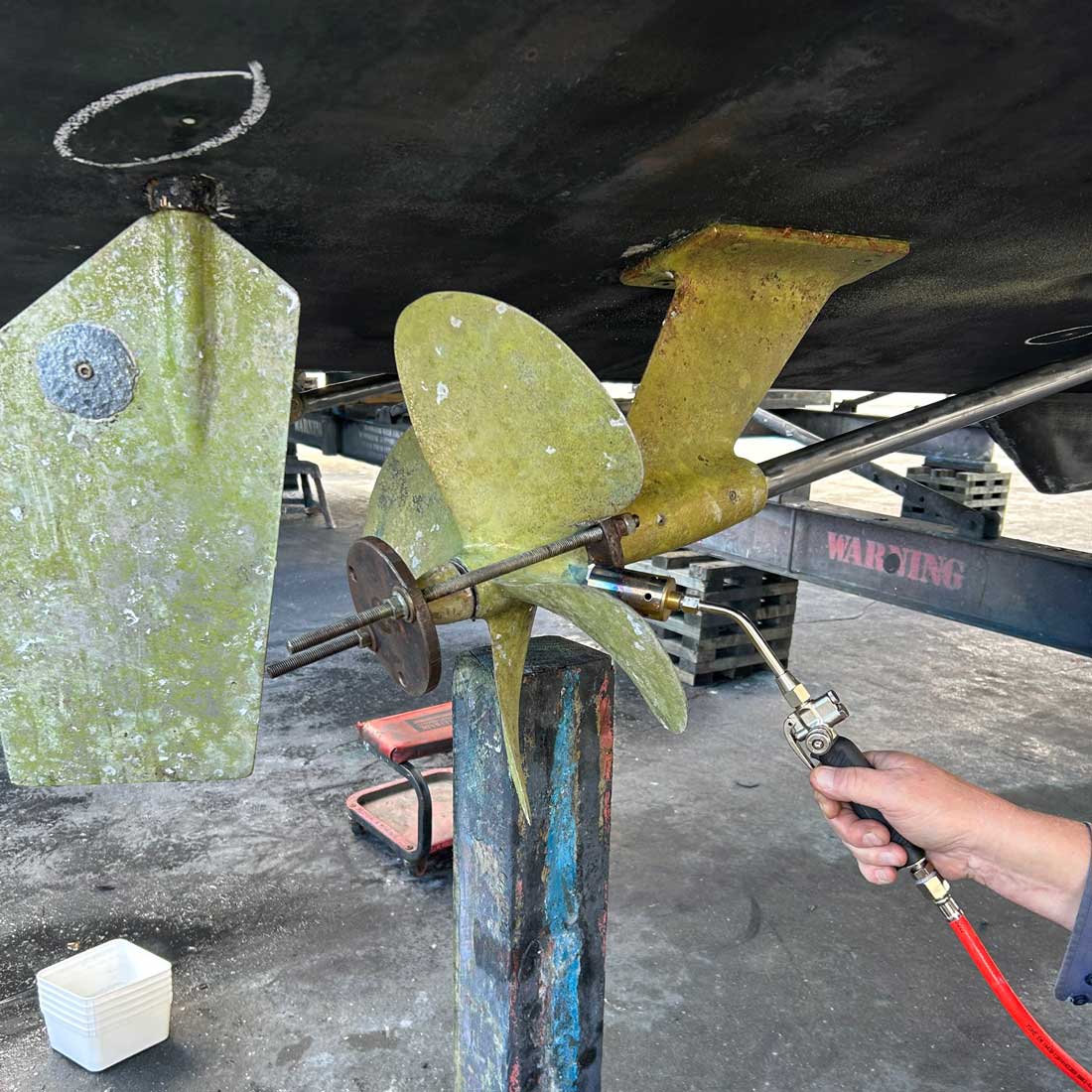

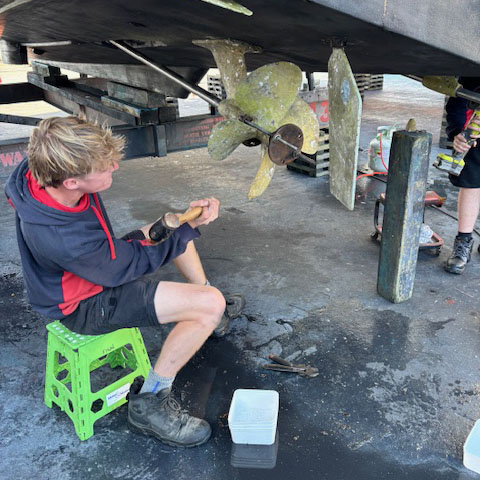

Propeller Shaft Removal Propeller Removal

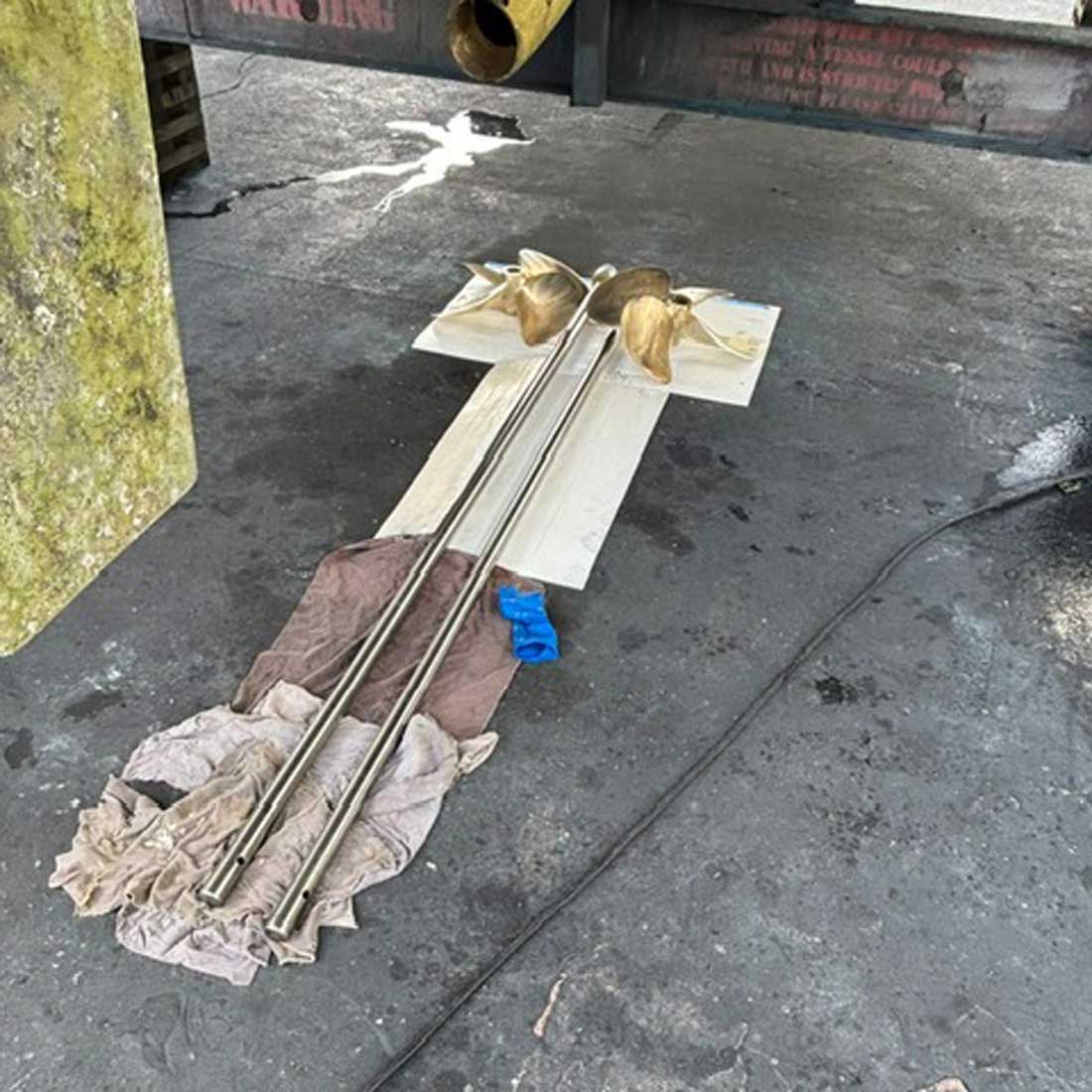

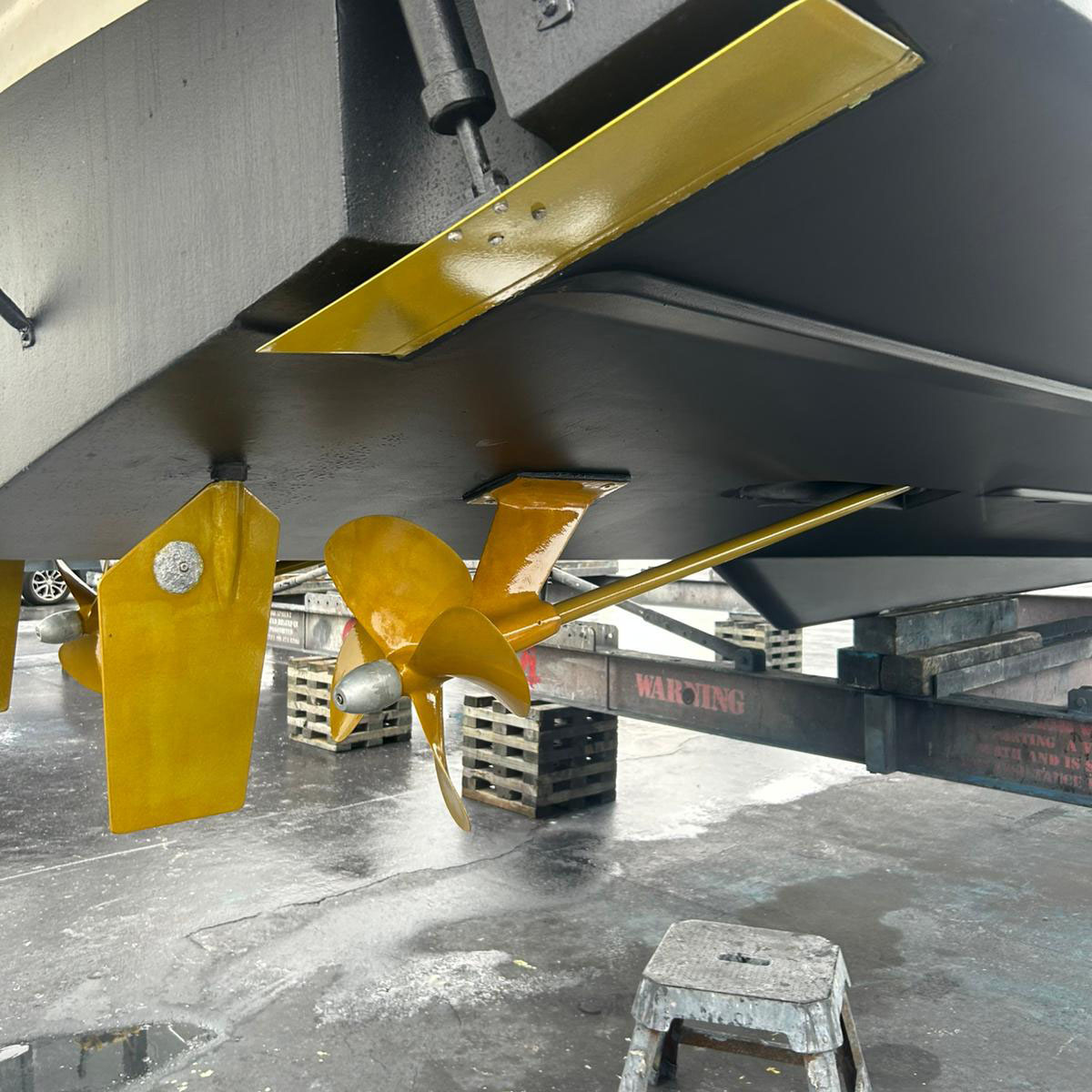

Shaft Removal New Drive System

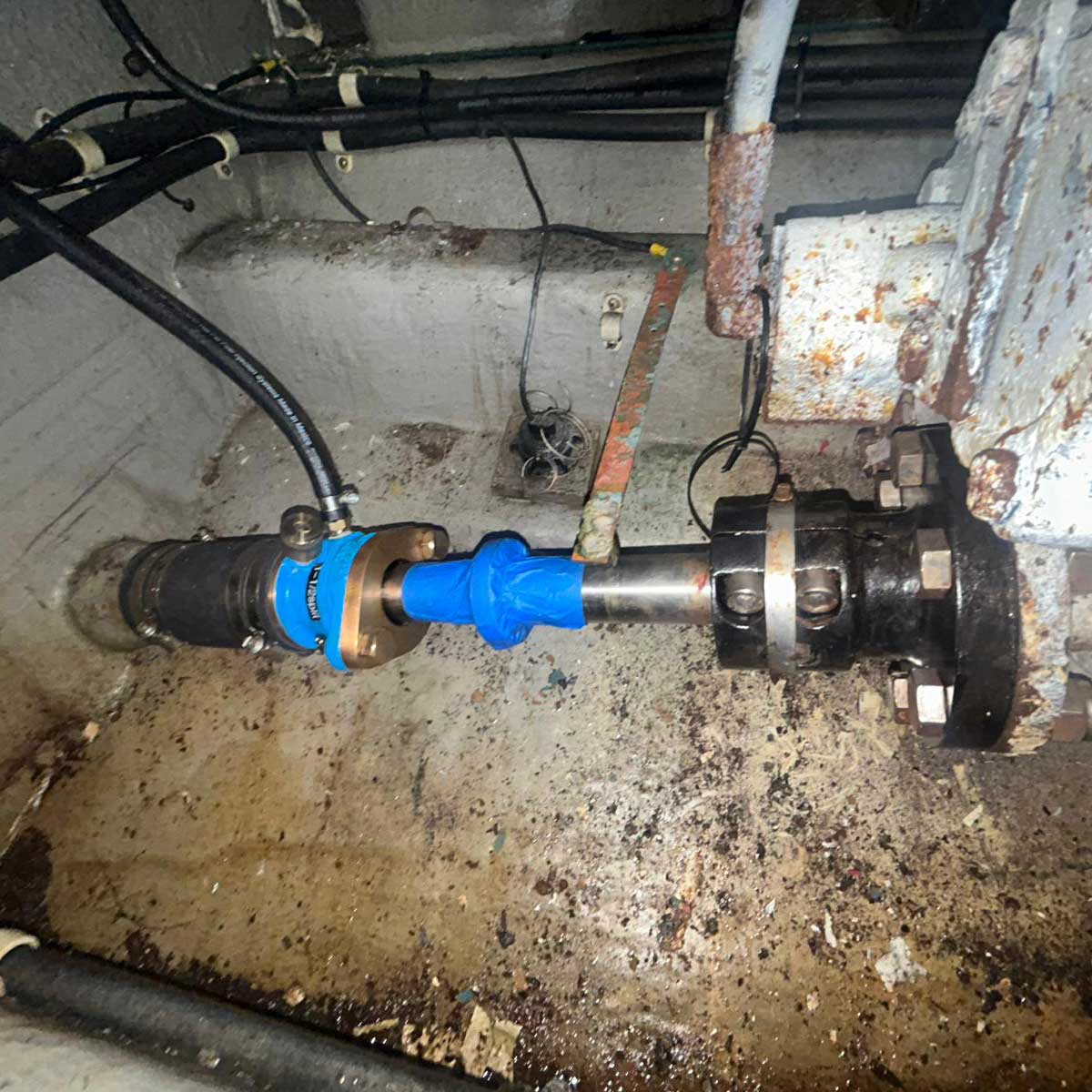

New Gland Seals

The shaft seals were in need of replacement as they were leaking, old, and corroding. While the shafts were out for the cutless bearings, we replaced both shaft seals, when it was all back together we checked and adjusted engine alignment.

New Gland Seals
